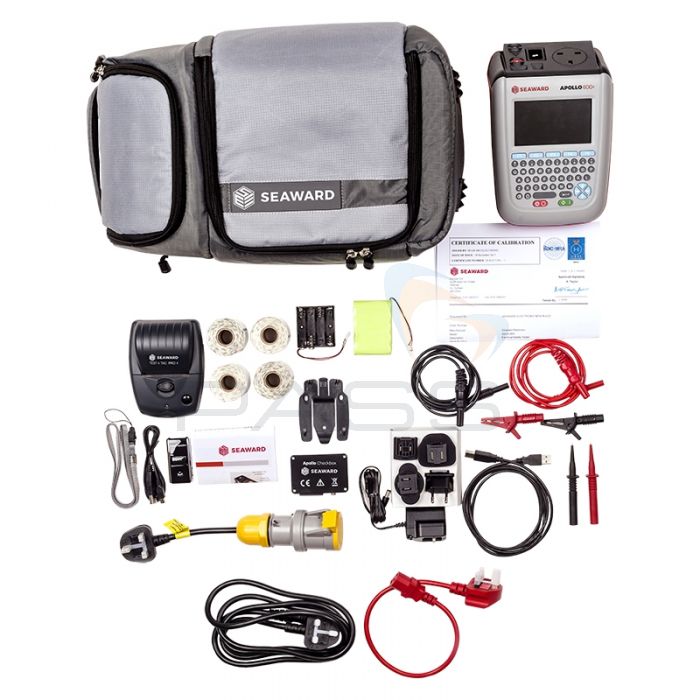

The Seaward Apollo 600+ PAT Tester Pro Bundle Kit & PATGuard 3 Software contains:
Please see the descriptions below for further details regarding these products.
The Seaward Apollo 600+ PAT Tester can be used to PAT-test an eclectic variety of portable appliances in accordance with the IET 5th Edition Code of Practice. It includes the following testing capabilities which may be arranged into up to 100 electrical and visual inspection sequences:
It also features a risk-based retest period calculator for determining a retest period according to the IET 5th Edition Code of Practice and a colour camera for capturing evidence of visual inspections. Images and results gathered using the Seaward Apollo 600+ PAT Tester can be saved to its extensive memory (capacity for 50 000 records and 2000 images).
In addition to testing high-volumes of portable appliances, the Seaward Apollo 600+ PAT Tester can be used to perform health and safety checks. It includes onboard reports for fire detection and emergency lighting and a universal risk assessment tool designed for recording hazards, calculating risk scores and planning and documenting corrective action.
Information gathered by the Apollo 600+ may be sent to an Android device via Bluetooth or to a PC via a USB cable. The user may also send information directly to a USB drive, this method of data transfer is unique to the Apollo 600+.
Hardware
It includes an interchangeable, rechargeable battery which works to reduce the tester’s downtime, especially as the Seaward Apollo 600+ PAT Tester may also be powered using a mains supply.
Furthermore, the inclusion of a wiring harness, test leads with strong PVC insulation and resilient test probes makes the Seaward Apollo 600+ PAT Tester better suited to demanding applications; this adds to the instrument’s versatility and expands its scope-for-use.
Firmware
The following firmware works to improve the versatility and adaptability of the Seaward Apollo 600+ PAT Tester:
The Seaward Apollo 600+ PAT Tester has been optimised for versatility, adaptability and practicality. It is ideal for comprehensively PAT testing a variety of appliances and for conducting a number of health and safety checks.
The Seaward Test ‘n’ Tag Pro Bundle can be used with the Seaward Apollo 600+ PAT Tester in order to read and print labels with 1D barcodes.
This kit includes:
The Seaward PATGuard 3 Software – 1 Year Subscription can be used to create reports and manage assets.
It includes a number of features, functions and capabilities designed to aid the Apollo 600+ with conducting PAT tests in accordance with the IET 5th Edition Code of Practice, as well as with performing health and safety checks. These features, functions and capabilities include:
This eclectic array of capabilities makes the Seaward PATGuard 3 Software ideal for:
The Seaward PATGuard 3 Software is ideal for organising test results and test images, as well as managing assets and creating a comprehensive array of reports.
Earth Continuity | |
Test Current | ±200mA DC |
Display Range | 0.01 to 19.99Ω |
Pass Value | User defined |
Insulation Resistance | |
Test Voltage | 500V / 250V DC @ 1mA nominal |
Display Range | 0.01MΩ to 19.99MΩ |
Pass Value | User defined |
IEC Lead Test | |
Test Voltage | 5V AC nominal |
Test | Live/neutral checks for o/c, s/c and crossed |
Protective Conductor Current/Load | |
Test Voltage | Supply voltage, maximum load current 16A |
Display Range | 0.01mA to 19.99mA |
Pass Value | User defined |
Touch Current | |
Test Voltage | Supply voltage, maximum load current 16A |
Display Range | 0.00 to 5mA |
Pass Value | User defined |
Load Power/Current | |
Test Voltage | 230V + 10%, maximum load current 16A |
Test Duration | Programmable up to a maximum of 255s depending on load. i.e. max duration is reduced for high loads |
Display Range | 0.00kVA to 4.00kVA 0.00A to 16.00A |
Alternative Leakage Current | |
Test Voltages | >25V AC <50V AC |
Display Range | 0.00mA to 19.99mA |
Pass Value | User defined |
RCD Test | |
Test Voltage | 230V + 10%, -15% |
Test Current | 15mA/30mA rms sinusoidal |
Display Range | 0ms to 2000ms |
Test Method | Internal isolation to avoid tripping distribution board RCDs |
Power Socket Test | |
Voltage Range | 207V to 253V AC |
Indication of Voltage Potential | Line potential phase to earth Line potential phase to neutral Line potential neutral to earth |
General Specifications | |
Memory Size | 50000 records + 2000 photos |
Weight | 1.5kg |
Dimensions | 230 x 150mm x 100mm |
Power Source | Mains or rechargeable battery pack |
General Features | 600+ | 500+ | 400+ |
Battery & mains powered | • | • | • |
Colour screen & QWERTY keypad | • | • | • |
Large internal memory | up to 50,000 records and 2,000 photos | up to 10,000 records | up to 2,000 records |
Bluetooth scanner & printer compatible | • | • | • |
Password controlled user accounts | • | • | |
Set up multiple user accounts with varying levels of privileges | • | • | |
Clone facility to set up multiple testers | • | • | |
Checkbox supplied as standard | • | • | |
Test Inspection Features | 600+ | 500+ | 400+ |
Auto-increment asset ID | • | • | |
PAT Setup option to allow for custom menus | • | • | |
Enter asset description after test using the keypad or barcode scanner | • | • | • |
Comprehensive electrical safety test features | • | • | • |
Point to point measurement (Rpe & IR) | • | • | Optional accessory required |
User configurable electrical test/visual inspection sequences | 100 | 100 | 25 |
User set sites & locations | 100 | 100 | 50 |
Risk-based retest period calculator | • | • | |
User definable comments lines against test records | 4 | 4 | |
Configurable checklists for any workplace test or inspection (user tests) | • | • | |
Onboard camera | • | ||
Universal risk assessment | • | ||
Health & safety certificates | • | ||
Data Transfer | 600+ | 500+ | 400+ |
1D and 2D Scanner connectivity | • | • | Reads 1D Data Only |
Read QR code (2D) labels with 2D scanner | • | • | |
RFID reader connectivity | • | • | |
Print Pass & Fail labels with 1D barcode | • | • | • |
Print Pass & Fail labels with QR code (2D) | • | • | |
Add your company logo to labels (on large 1D labels only) | • | • | |
Select from various label formats to print | 6 | 6 | 6 |
Download to PC via USB cable | • | • | • |
Data Transfer via USB flash drive | • | ||
Filter results to be downloaded | • | • | • |
Upload previous results to the tester for a retest | • | • |
System Requirements | IBM compatible PC |
Processor speed 500Mhz or higher | |
Microsoft Windows XP/Vista/7/8/10 | |
512Mb RAM | |
50Mb available hard disk space | |
Colour monitor with 32-bit colour or greater video card | |
Internet connection or CD ROM drive | |
Internet Explorer 8 or later |
