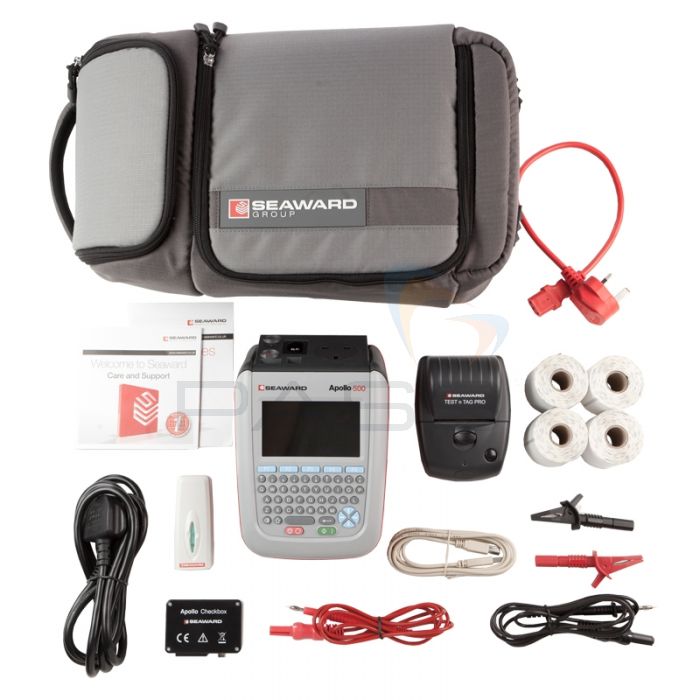

The Seaward Apollo 500+ PAT Tester Pro Bundle Kit includes the Seaward Apollo 500+ PAT Tester and Seaward Test ‘n’ Tag Pro Bundle. Please see the descriptions below for further information.
The Seaward Apollo 500+ PAT Tester includes an eclectic selection of tests and a comprehensive memory (capable of storing up to 10 000 records) making it particularly well suited to testing high-volumes of portable appliances in accordance with IET’s 5th Edition Code of Practice.
This instrument is capable of performing point-to-point earth continuity and insulation resistance tests, as well as the following checks:
These electrical tests can be organised into up to one-hundred user-customised electrical and visual test sequences. The Seaward Apollo 500+ PAT Tester also includes an integrated electrical risk assessment tool with a retest calculator allowing the user to determine a suggested retest period for each inspected appliance.
Firmware
The Seaward Apollo 500+ PAT Tester includes a number of options, tests and functions designed to make testing easier and quicker than ever, these add to the versatility and adaptability of the Seaward Apollo 500+ and include:
Hardware
it is supplied with a wiring harness, test leads with strong PVC insulation, and resilient test probes, making it better suited to demanding applications.
Furthermore, the Apollo 500+ includes an interchangeable, rechargeable battery pack which works to reduce downtime, particularly as the Seaward Apollo 500+ PAT Tester can also be powered using a mains supply.
However, the design of the Seaward Apollo 500+ PAT Tester continues to include practical features found on its predecessor the Apollo 500; these include a QWERTY keyboard and a high-definition, colour display.
Software Compatibility
It is compatible with the printer and scanner included in the Seaward Test ‘n’ Tag Pro Bundle (see below) allowing the user to read and print 1D barcode labels.
In addition to this, the Seaward Apollo 500+ PAT Tester’s Bluetooth communication capabilities allow the user to send information to his/her compatible smartphone or tablet.
When data is uploaded to a PC it may be organised into reports using Seaward’s PATGuard 3.4 Software with Time Manager (NOT included). This software can also be used to create invoices and the Time Manager feature has been designed to help the user with organising teams of workers.
The Seaward Apollo 500+ PAT Tester is a sophisticated, comprehensive and practical tester that can be easily tailored to suit the user’s requirements. It is ideal for performing comprehensive PAT checks on a wide variety of portable appliances.
The Seaward Test ‘n’ Tag Pro Bundle Kit includes instruments optimised to help realise the printing and scanning capabilities of the Seaward Apollo 500+ PAT Tester. The instruments in this bundle include:
Earth Continuity | |
Test Current | +/- 200mA DC |
Display Range | 0.01 – 19.99Ω |
Pass Value | User Defined |
Insulation Resistance | |
Test Voltage | 500V / 250V DC @ 1mA nominal |
Display Range | 0.01MΩ - 19.99MΩ |
Pass Value | User Defined |
IEC Lead Test | |
Test Voltage | 5V ac nominal |
Test | Live / Neutral Checks for o/c, s/c and crossed |
Protective Conductor Current/Load | |
Test Voltage | Supply voltage, maximum load current 16A |
Display Ranges | 0.01mA to 19.99mA |
Pass Value | User Defined |
Touch Current | |
Test Voltage | Supply Voltage, maximum load current 16A |
Display Range | 0.00 – 5mA |
Pass Value | User Defined |
Load Power/Current | |
Test Voltage | Supply Voltage, maximum load current 16A |
Test Duration | Programmable up to a maximum of 255s depending on load. i.e. max duration is reduced for high loads |
Display Range | 0.00kVA – 4.00kVA 0.00A – 16.00A |
Alternative Leakage Current | |
Test Voltages | >25Vac <50Vac |
Display Range | 0.00mA to 19.99mA |
Pass Value | User Defined |
RCD Test | |
Test Voltage | 230V +10%, -15% |
Test Current | 30mA / 150mA rms sinusoidal |
Display Range | 0ms - 2000ms (30mA), 0-40ms (150mA) |
Test Method | Internal isolation to avoid tripping distribution board RCD |
Power Socket Test | |
Voltage Range | 207V – 253V AC Indicates configuration of voltage potential:- Line potential phase to earth Line potential phase to neutral Line potential neutral to earth |
General | |
Memory Size | 10000 Records |
Weight | 1.5kg |
Dimensions | 230mm x 150mm x 100mm |
Power Source | Mains or Rechargeable Battery Pack |
General Features | 600+ | 500+ | 400+ |
Battery & mains powered | • | • | • |
Colour screen & QWERTY keypad | • | • | • |
Large internal memory | up to 50,000 records and 2,000 photos | up to 10,000 records | up to 2,000 records |
Bluetooth scanner & printer compatible | • | • | • |
Password controlled user accounts | • | • | |
Set up multiple user accounts with varying levels of privileges | • | • | |
Clone facility to set up multiple testers | • | • | |
Checkbox supplied as standard | • | • | |
Test Inspection Features | 600+ | 500+ | 400+ |
Auto-increment asset ID | • | • | |
PAT Setup option to allow for custom menus | • | • | |
Enter asset description after test using the keypad or barcode scanner | • | • | • |
Comprehensive electrical safety test features | • | • | • |
Point to point measurement (Rpe & IR) | • | • | Optional accessory required |
User configurable electrical test/visual inspection sequences | 100 | 100 | 25 |
User set sites & locations | 100 | 100 | 50 |
Risk-based retest period calculator | • | • | |
User definable comments lines against test records | 4 | 4 | |
Configurable checklists for any workplace test or inspection (user tests) | • | • | |
Onboard camera | • | ||
Universal risk assessment | • | ||
Health & safety certificates | • | ||
Data Transfer | 600+ | 500+ | 400+ |
1D and 2D Scanner connectivity | • | • | Reads 1D Data Only |
Read QR code (2D) labels with 2D scanner | • | • | |
RFID reader connectivity | • | • | |
Print Pass & Fail labels with 1D barcode | • | • | • |
Print Pass & Fail labels with QR code (2D) | • | • | |
Add your company logo to labels (on large 1D labels only) | • | • | |
Select from various label formats to print | 6 | 6 | 6 |
Download to PC via USB cable | • | • | • |
Data Transfer via USB flash drive | • | ||
Filter results to be downloaded | • | • | • |
Upload previous results to the tester for a retest | • | • |
