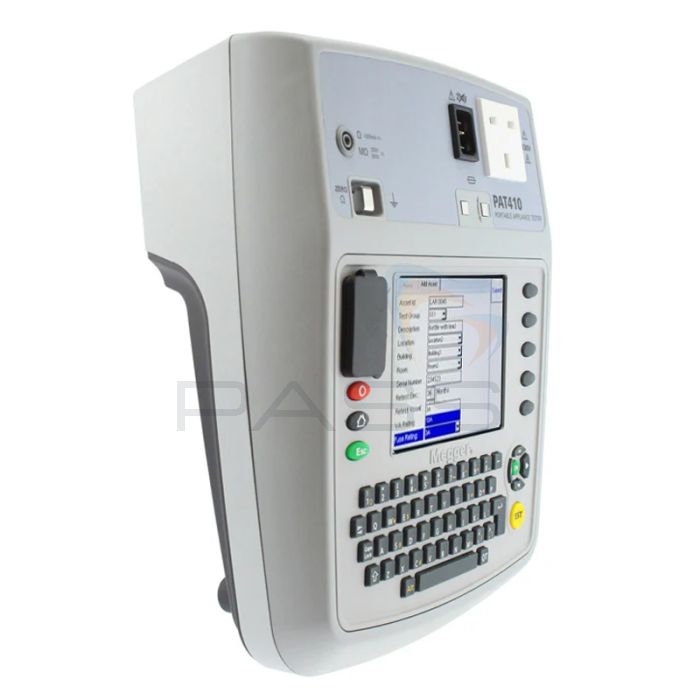

Megger PAT410 PAT Tester
- Built-in 10000 record storage
- Automatic and manual testing procedures
- Download to memory stick and transfer to PC
SKU
1000-745
MPN
1000-745
The entry-level tester in Megger's PAT400 series, the PAT410 is great for testing 230V appliances (no 110V operation included) and includes large-size, 10000 record memory for use in applications with a large amount of appliances to test.
Whether you're a specialist PAT testing organisation, electrical contractor, work in maintenance or in any environment ranging from cinemas to colleges and schools, the PAT410 is ideal for PAT testing your appliances. It performs all basic PAT checks, including earth bond and continuity testing at 200mA, 250/500V insulation tests and substitute, differential and touch current testing. It can also perform earth bond, insulation and polarity tests on extension leads and includes a dedicated portable RCD testing function.
The PAT410 has a large size, 5.7" VGA backlit full colour screen for easier reading of results, a full QWERTY keyboard for quick data entry and 10000 record on-board storage for recalling testing results. This data can be ported into a PC directly using a memory stick and SIMPLYPATS software (sold separately).
To help with speeding up testing the PAT410 has built-in automatic testing routines which will cycle through applicable tests. Users can also adjust the testing time and select pass limits as needed to cater for different appliances and to take full control of readings if the automatic mode isn't suitable.
Megger PAT410 Downloadable PAT Tester Key Features
- Suitable for testing appliances with 230V supply
- Earth bond and continuity testing at 200mA with bond lead null
- Insulation testing at 250 and 500V
- Alternative leakage tests - substitute, differential and touch current
- VA measurements
- Extension lead tests - earth bond, insulation, polarity and portable RCD
- Lightweight design
- Auto testing procedures
- Manual testing procedures
- Fuse check function
- Colour display
- Configurable test times
- Selectable pass limits
- Lead storage pouch
- Fully downloadable memory - store up to 10000 records directly on the tester
- USB connector
- SIMPLYPATS software (sold separately)
What's Included?
- Megger PAT410 Downloadable PAT Tester
- Printed Quick Start Guide
- Full User Guide on CD
- Calibration Certificate
- Continuity/Earth Bond Lead + Probe (Black)
- Extension Lead Adaptor (13A)
- Carrying Case
- Plug Adaptor (IEC C6 - C13)
- Screen Protector
Megger PAT410 Bundle Offers
If you're PAT testing, you'll need labels, connectors and more to do it effectively. If you're using a downloadable PAT tester like the PAT410, you'll probably need SIMPLYPATS software and other items too to take full control over your results.
Thankfully our exclusive PAT kits come with everything you'll need for PAT testing for a massively reduced price! Interested? This table breaks down our PAT410 offers.
| Item | PAT Essentials Kit (Bundle 1) | PAT Business Kit (Bundle 2) |
PAT Premium Kit (Bundle 3) | PAT Elite Printer Kit (Bundle 4) |
|---|---|---|---|---|
|
Need to check if your sockets are working right? Just plug this in to a standard UK plug socket and if there's a problem, the socket tester will let you know about it! |
Yes | Yes | Yes | Yes |
|
This bundle pack includes a set of 5 fully insulated electrical screwdrivers which are suitable for live electrical work to 1000V |
Yes | Yes | Yes | Yes |
|
Gain a certificate of competency to carry out PAT testing in just two hours with our online PAT course and exam. Teams may be trained by purchasing the course multiple times; each staff member will be assigned a unique activation code and login. |
Yes | Yes | Yes | Yes |
|
A comprehensive, extremely detailed guidebook with useful information, diagrams, pictures and case studies related to PAT testing. |
Yes | Yes | Yes | Yes |
|
It's common practice to check microwave radiation levels while you're PAT testing - use this portable, easy-to-use microwave leakage detector to do so |
Yes | Yes | Yes | Yes |
|
A special bundle pack with three IEC adapters, allowing you to use your PAT tester with various types of IEC cables and power supplies |
Yes | Yes | Yes | Yes |
|
Use these two 110V connector leads to connect your PAT tester to 110V equipment commonly found on construction sites and similar applications |
Yes | Yes | Yes | Yes |
|
A PAT essential! We include two 500 label rolls in your purchase, ensuring you have everything you need for labelling appliances after testing |
Yes, 1000x | Yes, 1000x | Yes, 1000x | Yes, 500x |
|
Uniquely-designed passed PAT testing labels with circular design - ideal for smaller plugs or appliances where you can't easily fit other labels |
Yes, 500x | Yes, 1000x | Yes, 1000x | Yes, 500x |
|
These labels wrap around cables, and are great for labelling appliance power leads where you can't fix a suitable label |
Yes, 500x | Yes, 500x | Yes, 500x | Yes, 500x |
|
You won't need these very often, but if an appliance ever fails testing you should place one of these labels and take it out of use for repair or replacement |
Yes, 500x | Yes, 500x | Yes, 500x | Yes, 500x |
|
You should check your appliances over for obvious signs of damage before testing. Look for frayed wires, loose connection and damaged plugs, then place one of these labels on if the appliance passes |
No | Yes | Yes | Yes |
|
Use SIMPLYPATS software alongside your PAT tester to download your results to PC and keep a database of all of your findings |
No | Yes | Yes | Yes |
|
This Bluetooth/USB barcode scanner is great for speeding up your record-keeping by using your Megger PAT tester and barcode labels |
No | No | Yes | Yes |
|
Pair these up with your Bluetooth barcode scanner and quickly recall your previous records, or make new records, using your Apollo series PAT tester |
No | No | Yes, 2000x | Yes, 1000x |
|
Create customised labels when out testing with this portable printer and cartridge pack! |
No | No | No | Yes |
£1,178.00
£1,413.60 inc vat
Only 1 in Stock:
Available Next Working Day*
Offers
FREE Accessory Bundle
- PASS Training Online Course with Exam, Pass & Fail Labels - PTPROMO7, typically £93.27
- PASS The Complete Guide to EET (PAT) Testing, 5th Edition - PASS-PAT-HB, typically £24.99
Technical Information
Specification
Megger PAT410 Technical Specifications
| Electrical Supply Range | 230V ±10 @ 50/60Hz |
| Continuity Test (200mA) | |
| Continuity Test Voltage | 9V AC ± 10% ± 0.1V (supply: 230V 50Hz) |
| Continuity Resistance Accuracy | ±5% ± 3 digits (0 to 0.49Ω) ±5% ± 5 digits (0.5 to 0.99Ω) |
| Continuity Resistance Resolution | 10mΩ (1 to 19.99Ω) |
| Display Range | 0 to 19.99Ω |
| Insulation Test (250V and 500V) | |
| Insulation Resistance Accuracy (230V) | ±2% ±5 digits (0 to 19.99MΩ) ±5% ± 10 digits (20 to 99.99MΩ) |
| Insulation Resistance Resolution | 0.01MΩ |
| Display Range | 0 to 99.99MΩ |
| Substitute Leakage Test | |
| Test Voltage and Frequency | 40V AC ±10% nominal mains frequency |
| Leakage Current Accuracy | ±5% ± 5 digits |
| Leakage Current Resolution | 0.01mA |
| Display Range | 0 to 19.99mA |
| Differential Leakage Current | |
| Test Voltage | Nominal mains 110/230V AC |
| Test Frequency | Nominal mains 50/60Hz |
| Differential Leakage Current Accuracy | ±5% ± 0.05mA (1.0mA to 9.99mA) ±5% ± 0.1mA (0.1mA to 0.99mA) |
| Resolution | 0.01mA |
| Display/Measurement Range | 0.10mA to 19.99mA |
| Test Duration | User-selectable from 1 sec 10 sec to infinity |
| Touch Current Test | |
| Test Voltage and Frequency | Nominal mains supply |
| Touch Current Accuracy | ±5% ± 5 digits |
| Touch Current Resolution | 0.01mA |
| Display | 0 to 10mA |
| Operational Test | |
| Test Voltage and Frequency | Nominal mains supply |
| VA Rating | 230V 3700VA 110V 1800VA |
| VA Accuracy | ±5% ± 10 digits (0 to 99VA) ±5% ± 50 digits (100VA to 999VA) ±5% ± 100 digits (1000VA to 3700VA) |
| Resolution | 1VA (0 to 3700VA) |
| Display Range | 0 to 3990VA |
| Extension Lead Test | |
| Tests Performed | Bond, insulation and polarity |
| Polarity Test Voltage | 12V |
| Polarity checks | Lead ok Live neutral S/C Live neutral reversed Live/neutral O/C |
| Portable RCD Test | |
| Test Voltage and Frequency | Nominal mains supply |
| Test Current Accuracy | -8% to -2% (1/2 x I) +2 to +8% (1 x I, 5 x I) |
| Trip Time Accuracy | ±1% ± 5 digits |
| Trip Time Resolution | 0.1ms |
| Display Range | 0 to 1999ms (1/2 x I) 0 to 300ms (1 x I) 0 to 40ms (5 x I) |
| Fuse Test | |
| Test Voltage | 3.3V |
| Warning | Audible beep if fuse is OK |
| Environmental | |
| Operating Temperature | -10 to 50°C |
| Storage Temperature | -20 to 60°C |
| Humidity | 90% RH @ -10 to 30°C 75% RH @ +30 to 50°C |
| Maximum Altitude | 2000m |
| Ingress Protection | IP40 |
| Other | |
| Weight | 2.7kg |
| Dimensions | 145 (H) x 255 (W) x 320mm (L) |
| Safety | IEC 61010-1: CAT II 300V |
| EMC | IEC 61326-1: 2006 IEC 61326-2-2: 2005 |
