Megger PAT320 PAT Tester - PAT Professional Kit (Bundle 2)
FREE - PASS The Complete Guide to EET (PAT) Testing, 5th Edition
Buy a PAT testing kit and get an updated PAT Testing Guide worth £24.99. This 129 page indepth PAT testing book is a great addition to your kit. View PAT Guide
This Megger PAT320 kit includes a manual PAT software for professional looking PAT reports and data management.

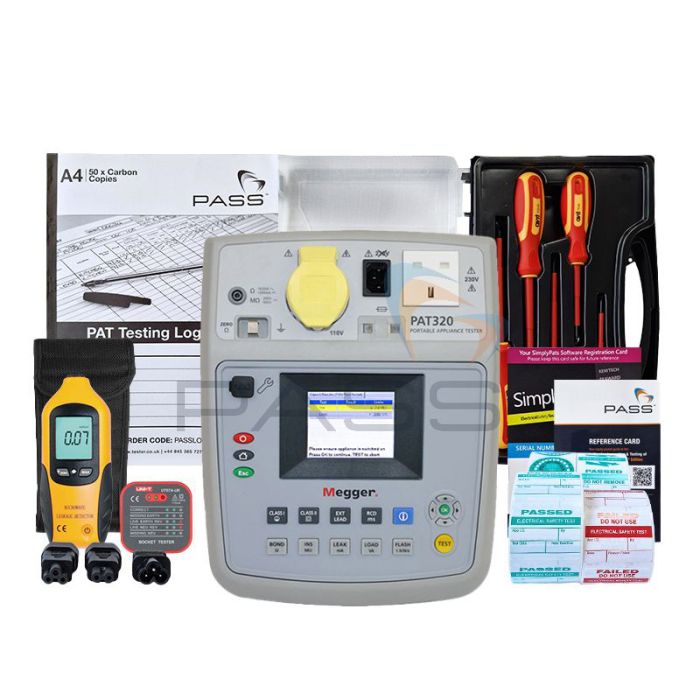

Megger PAT320 PAT Tester Kit 2 comes supplied with
- Megger PAT320 PAT Tester
- Carrying Case
- Continuity/Earth Bond Lead
- Extension Lead Adapter BS1363
We also include the following additions:
- Deluxe Carrying Case
- Socket Tester
- eLearning PAT Testing Course - Includes Exam and Certificate
- PASS PAT Testing Logbook
- Microwave Leakage Detector
- PASSPTA21 - IEC (C13 Female) to Cloverleaf (C6 Male) PAT Adaptor
- PASSPTA29 - IEC Plug (C14) to Cloverleaf (C5) PAT Adaptor
- PASSPTA28 - IEC Plug (C14) to Fig 8 (C7) PAT Adaptor
- CK Tools AVO5050 5 Piece Insulated Screwdriver Set
- 500 x Passed PAT Testing Labels
- 500 x Circular Passed PAT Testing Labels
- 250 x Cable Wrap Labels
- 250 x Failed PAT Testing Labels
- SimplyPats Manual Entry Software
Megger PAT320 PAT Tester description
A new tester to the market the PAT 320 is part of the Megger 300 series of PAT testers recently launched in 2010.
The Megger PAT320 PAT Tester is quite simple to use. It has a button for each of the PAT tests, so all you need to do is plug the item into the tester and press a button for the test that you require.
The tester is capable of completing all of the required tests and can carry out Class one, Class two and RCD tests. It can also do the standard insulation, Load and Leakage tests. This tester is good for carrying out lead tests on extension leads, IEC leads as well as a whole host of electrical appliances.
The PAT320 can test in “auto mode” which means that it will automatically steer through a series of tests to complete the PAT Test, for example it will automatically go through the bond test, insulation test and earth leakage, depending on which classification you have chosen.
These PAT Testers are great for those working in the electrical trade and the maintenance and repair sector. It does not have a memory so you will have to record the PAT test results while you test each item. This can be done in a record book or electronically, whatever you prefer.
If the PAT320 detects a fail then it will cease testing on that test if which it failed. Therefore indicating the test that it failed on. You can also set your own pass rates. If required the tester will allow you to carry out individual tests. Great for those who complete appliance repairs and upgrades.
Another tester in the 300 series is the Megger PAT350. This is the same as the PAT320 but with the extra feature of a flash test.
To find out more about the PAT320 PAT Tester visit the Megger PAT320 product page.
Free Complete Guide to EET (PAT) Testing
- PASS The Complete Guide to EET (PAT) Testing, 5th Edition - PASS-PAT-HB, typically £24.99
Megger PAT320 Technical Specifications
| Electrical Supply Range | |
| 230V AC | 230V AC ±10% |
| 110V AC | 110V AC ±10% |
| Supply Measurement | |
| Voltage | ±2% ± 1V |
| Frequency | ±1% ± 0.1Hz |
| Bond Test | |
| Open Circuit Voltage | 9V AC ±10% ±0.1V (Supply: 230V 50Hz) |
| 10A Bond Test Current | 10A rms ±20% ±0.5A into 0.1Ω |
| 25A Bond Test Current | 25A rms ± 5% ± 0.5A into 0.1Ω |
| Earth Bond Resistance Accuracy | ±5% ± 3 digits (0 to 0.49Ω) ±5% ± 5 digits (0.5 to .99Ω) |
| Earth Bond Resistance Resolution | 10mΩ (0 to 1.99Ω) |
| Display Range | 0 to 1.99Ω |
| Bond Test Nulling | Up to 1.00Ω |
| Adjustable Test Duration | User selectable from 1 sec to 20 sec |
| Continuity Test | |
| Note | The continuity test is a DC test performed automatically in both positive and negative directions. The average of the two results is shown |
| Continuity Test Voltage | 4.0V DC -0% +10% (open circuit) |
| Continuity Test Current | 200mA -0% + 10% ± 5mA (into 2Ω load) |
| Continuity Resistance Accuracy | ±5% ±3 digits (0 to 0.49Ω) ±5% ±5 digits (0.5 to .99Ω) |
| Continuity Resistance Resolution | 10mΩ (1 to 19.99Ω) |
| Display Range | 0 to 19.99Ω |
| Continuity Test Nulling | Up to 9.99Ω |
| Test Duration | User selectable from 1 sec to 20 sec |
| Insulation Test | |
| Insulation Test Voltage | 250V DC -0%/+25% open circuit 500V DC -0%/+25% open circuit (500V DC across 0.5MΩ) |
| Insulation Resistance Accuracy (230V) | ±2% ±5 digits (0 to 19.99MΩ) ±5% ± 10 digits (20 to 99.99MΩ) |
| Insulation Resistance Accuracy (110V) | ±5 ±5 digits (0 to 10MΩ) |
| Insulation Resistance Resolution | 0.01MΩ (0.10 to 99.99MΩ) |
| Display Range | 0 to 99.99MΩ |
| Test Duration | User selectable from 1 sec to 1 minutes |
| Substitute Leakage Test | |
| Test Voltage | 40V AC ±10% |
| Test Frequency | Nominal mains 50/60Hz |
| Leakage Current Accuracy | ±5% ± 5 digits |
| Leakage Current Resolution | 0.01mA |
| Display Range | 0 to 19.99mA |
| Test Duration | User selectable from 1 sec to 1 minute Reading corrected to 230V + 10% or 110V +10% AC |
| Differential Leakage Current | |
| Test Voltage | Nominal mains 110V/230V AC |
| Test Frequency | Nominal mains 50/60Hz |
| Differential Leakage Current Accuracy | ±5% ± 5 digits |
| Differential Leakage Current Resolution | 0.01mA |
| Display Range | 0 to 19.99mA Reading corrected to 230V +10 % or 110V + 10% AC |
| Touch Current Test | |
| Test Voltage | Nominal mains 1150/230V AC |
| Test Frequency | Nominal mains 50/60Hz |
| Touch Current Accuracy | ±5% ±5 digits |
| Touch Current Resolution | 0.01mA |
| Display Range | 0 to 10mA |
| Test Duration | User selectable from 1 sec to 5 sec Reading corrected to 230V + 10% or 110V + 10% AC |
| Operational Test | |
| Test Voltage | Nominal mains 110V/230V AC |
| Accuracy | ±5% ±10 digits (0 to 99VA) ±5% ±50 digits (100 to 999VA) ±5% ±100 digits (1000 to 3700VA) |
| Resolution | 1VA (0 to 3700VA) |
| Display Range | 0 to 3.99KVA Reading corrected to 230V or 110V AC Results show load VA |
| Extension Lead Test | |
| Polartity Test Voltage | 12V |
| Polarity | Leak OK Live neutral S/C Live neutral reversed Live/neutral O/C |
| Portable RCD Test | |
| RCD Test Voltage | Nominal mains 110/230V |
| RCD Test Frequency | 50Hz |
| Test Current Accuracy | -8% to -2% (1/2 x I) ±2% to +8^ (1 x 1,5 x I) |
| Trip Time Accuracy | ±1% ±5 digits |
| Trip Time Resolution | 0.1ms |
| Display Range | 0 to 1999ms (1/2 x I) 0 to 300ms (1 x I) 0 to 40ms (5 x I) |
| Fuse Test | |
| Test Voltage | 3.3V |
| Warning | Audible Beep if fuse is ok |
