Kewtech EZYPAT-PLUS PAT Tester – PAT Essentials Kit (Bundle 1)

The Kewtech EZYPAT-PLUS PAT Tester – PAT Essentials Kit (Bundle 1) includes the Kewtech EZYPAT-PLUS PAT Tester, supplied with the standard manufacturer’s accessories, and an array of additional PAT testing accessories, such as logbook, labels, and adapters. Please see the ‘What’s Included?’ section for a comprehensive overview of what is included in the Kewtech EZYPAT PAT Tester – PAT Essentials Kit (Bundle 1).

For further information regarding the Kewtech EZYPAT-PLUS PAT Tester, please see the following description.

Kewtech EZYPAT-PLUS PAT Tester Description

Optimised for testing Class I and Class II appliances with or without electronic on/off switches, and extension leads, the Kewtech EZYPAT-PLUS PAT Tester is the intermediate model in Kewtech’s EZYPAT/SMARTPAT range.

It has the following testing capabilities:

• 200mA earth continuity test (IT safe)
• 1-second quick continuity check
• 5-second continuity check
• 250V DC insulation test (IT safe)
• 500V DC insulation test
• Substitute leakage test (at 110V and 230V)
• Extension lead test

Like its sister product, the Kewtech EZYPAT PAT Tester, the EZYPAT-PLUS includes pre-programmed test sequences for Class I and Class II appliances, and extension leads. These test sequences can be run via pressing the clearly labelled function buttons located on the front of the tester.

In addition to pre-programmed test sequences, the Kewtech EZYPAT-PLUS PAT Tester also includes, like its sister product, a Test Lead Null setting and Appliance Pre-check. These functions add to the accuracy and safety of the EZYPAT-PLUS respectively. When engaged, the Test Lead Null setting nullifies the resistance in the test leads in order to ensure resistance readings are accurate. The Appliance Pre-check protects both the instrument and the user from harm as it is designed to ascertain whether the appliance-under-investigation is powered on or off prior to testing.

Also expanding the testing capabilities of the Kewtech EZYPAT-PLUS PAT Tester are the supplied Kewtech accessories which may be used with the tester to facilitate a variety of tests in an array of environments. The Kewtech EZYPAT-PLUS PAT Tester is supplied with an EZYEARTH Earth Continuity Test Lead with Probe and Crocodile Clip, EZYLEAD Extension Lead Adapter, and EZYMAIN Mains Lead.

The Kewtech EZYPAT-PLUS PAT Tester is able to perform up to 1400 tests over the course of the replaceable battery’s life cycle. Measurements and PASS/ FAIL results are indicated on the Kewtech EZYPAT-PLUS PAT Tester’s large, backlit display. Via this display, the user may view a numerical value as well as a written PASS or FAIL indication. The backlight will also change colour to indicate whether a test has been passed or failed. If the light turns green this indicates a PASS, if it turns red this indicates a FAIL.

The Kewtech EZYPAT-PLUS PAT Tester is a simple-to-use, yet comprehensive, non-downloading, battery-operated PAT tester. It is ideal for checking extension leads as well as appliances, such as computers and TVs, which include electronic on/off switches.

Kewtech EZYPAT-PLUS PAT Tester Key Features

• Optimised for testing Class I and Class II appliances with and without electronic on/off switches, and extension leads
• Intermediate model in Kewtech’s EZYPAT/SMARTPAT range
• 200mA earth continuity test (IT safe)
• 1-second quick continuity check
• 5-second continuity check
• 250V DC insulation test (IT safe)
• 500V DC insulation test
• Substitute leakage test (at 110V and 230V)
• Extension lead test
• Pre-programmed test sequences for Class I and Class II appliances and extension leads
• Clearly labelled function buttons for commencing pre-programmed test sequences
• Test Lead Null setting
• Appliance Pre-check
• Supplied with an EZYEARTH Earth Continuity Test Lead with Probe and Crocodile Clip, EZYLEAD Extension Lead Adapter, and EZYMAIN Mains Lead
• Perform up to 1400 tests over the duration of the replaceable battery’s life cycle
• Large, backlit display
• View a numerical value as well as a written PASS/ FAIL indication via the display
• Backlight changes to green to indicate a PASS
• Backlight changes to red to indicate a FAIL
• Use with the Kewtech KEWPAT App in Manual mode to collect data and create reports
• Download the Kewtech KEWPAT App for free from the App Store (iOS) and Google Play (Android)
• A simple-to-use yet comprehensive, non-downloading, battery-operated PAT tester
• Ideal for checking extension leads, as well as computers and TVs and other Class I and Class II appliances with electronic on/off switches

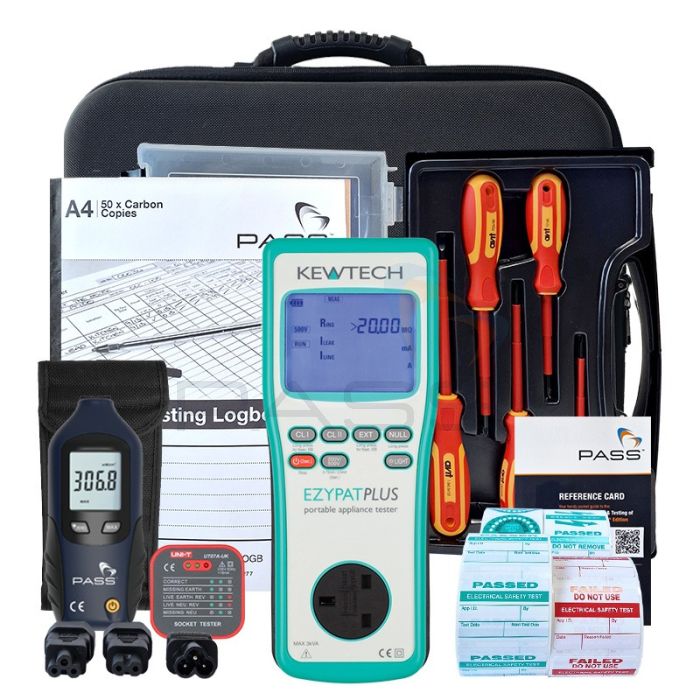

What’s Included in the Kewtech EZYPAT-PLUS PAT Tester – PAT Essentials Kit (Bundle 1)?

• Kewtech EZYPAT - PLUS PAT Tester
• EZYLEAD Extension Lead Adapter (from Kewtech)
• EZYEARTH Earth Continuity Test Lead with Probe and Crocodile Clip (from Kewtech)
• EZYMAIN Mains Lead (from Kewtech)
• Carry Bag with Strap (from Kewtech)
• Quick Start Guide (from Kewtech)
• End of Line Calibration Certificate (from Kewtech)
• Deluxe Carrying Case
• Socket Tester
• eLearning PAT Testing Course - Includes Exam and Certificate
• PASS PAT Testing Logbook
• Microwave Leakage Detector
• PASSPTA21 – IEC (C13 Female) to Cloverleaf (C6 Male) PAT Adapter
• PASSPTA29 – IEC Plug (C14) to Cloverleaf (C5) PAT Adapter
• PASSPTA28 – IEC Plug (C14) to Fig 8 (C7) PAT Adapter
• CK Tools AVO5050 5 Piece Insulated Screwdriver Set
• 500 x Passed PAT Testing Labels
• 500 x Circular Passed PAT Testing Labels
• 250 x Cable Wrap Labels
• 250 x Failed PAT Testing Labels

The Kewtech EZYPAT-PLUS PAT Tester is also available in a second bundle, the Kewtech EZYPAT PAT-PLUS Tester PAT Professional Kit (Bundle 2). Please see the table below for an overview of the additional items included in both this bundle and Bundle 2.
