Item Description	EZYPAT PAT Tester - PAT Essentials Kit (Bundle 1)	EZYPAT PAT Tester - PAT Professional Kit (Bundle 2)
Deluxe Carrying Case Keep all of your equipment safe and in one place with this large-size carrying case! (appearance of the case may vary depending on current stock)	√	√
Socket Tester Need to check if your sockets are working right? Just plug this into a standard UK plug socket and if there's a problem, the socket tester will let you know about it! (socket tester may vary depending on current stock)	√	√
eLearning PAT Testing Course - Includes Exam and Certificate Gain a certificate of competency to carry out PAT testing in just two hours with our online PAT course and exam. Teams of staff may be trained by purchasing the course multiple times; each staff member will be assigned a unique activation code and login.	√	√
PASS PAT Testing Logbook Keep a record of all of your tests with our logbook. The book includes carbon-copied records, allowing you to keep one for yourself and give the other to customers or keep for a reference.	√	√
Microwave Leakage Detector When PAT testing, it's common practice to check microwaves are also not emitting high levels of radiation. With our microwave leakage detector, you'll be able to do this testing with ease.	√	√
PASSPTA21 - IEC (C13 Female) to Cloverleaf (C6 Male) PAT Adapter You'll need this adapter to connect your PAT tester to laptop/PC power leads and other similar equipment which has a cloverleaf-shaped connector.	√	√
PASSPTA29 - IEC Plug (C14) to Cloverleaf (C5) PAT Adapter This adaptor is used to connect to laptop power supplies, portable projectors and other similar equipment.	√	√
PASSPTA28 - IEC Plug (C14) to Fig 8 (C7) Pat Adapter You'll find several appliances such as game consoles, laptop power supplies, audio/visual equipment and more use this type of connector - with this adapter, you can connect them up to your PAT tester.	√	√
CK Tools AV05050 5 Piece Insulated Screwdriver Kit A handy set of insulated screwdrivers (suitable for live working to 1000V) suitable for a wide variety of applications. Includes 2 x PZ (1 x 80 and 2 x 100mm) + 3 x slotted (3 x 75, 4 x 100 and 5.5 x 125mm) screwdrivers in a carrying case.	√	√
WM1 - 500 x Passed PAT Testing Labels You'll need these every time an appliance passes a test - just tear one off, fill in the fields (appliance ID, your name, test date and next test due date) and stick on the appliance when done.	√	√
WM6500 - 500 x Circular Passed PAT Testing Labels These circular-shaped PAT labels are great for plug tops and any other appliance. The labels also include space for ticking the month/year the next test is due.	√	√
WM12 250 - 250 x Cable Wrap Labels These passed labels wrap around a wire/cable from an appliance and are recommended for use with power supplies or on appliances where you can't stick a label. They also include space for writing your appliance ID, name, test date and next test date.	√	√
WM7 250 - 250 x Failed PAT Testing Labels You won't need these as often as your passed labels, but you'll need to apply one of these whenever an appliance fails a test. If it does fail, the item should be taken out of service for repair or replacement	√	√
SimplyPats Manual PAT Testing Software Keep a database of your PAT testing information on your PC and print reports with SimplyPats Manual software. Please note that this software is manual entry; you cannot download directly from the PAT tester and you will need to type in records by hand.	-	√

Specification	EZYPAT	EZYPAT PLUS	SMARTPAT
200mA Continuity Test	X	X	X
250V Insulation Test	X	X	X
500V Insulation Test	X	X	X
Substitute Leakage Test	X	X	X
Polarity Check	X	X	X
110V Load and Run Test		X	X
230V Load and Run Test		X	X
Portable RCD Test			X
Compatible with KEWPAT App			X
Customisable Test Sequences			X

Protective Conductor Resistance Test
Measuring Range	0.00 - 20.00 Ω (NULL value inc)*
Over-range Indication	> 20.00 Ω
Resolution	0.01Ω
Open-circuit Voltage	5 V ±0.4 V DC
Measuring Current	200 mA DC (nominal value)
Accuracy	±3%rdg ±5dgt
* Resistances exceeding 3 Ω cannot be cancelled by NULL function.
Insulation
Measuring Range	0.00 - 20.00 MΩ
Over-range Indication	> 20.00 MΩ
Resolution	0.01 MΩ
No-load Voltage	250V : 250 V DC +20%, -0%
No-load Voltage	500V: 500 V DC +20%, -0%
Short-circuit Current	1.5 mA DC or less
Rated Current	250V: 1 -1.2 mA with a load of 0.25 MΩ
Rated Current	500V: 1 to 1.2 mA with a load of 0.5 MΩ
Accuracy	±2%rdg±3dgt
Substitute Leakage
Measuring Range	0.10 - 12.00 mA rms
Over-range Indication	> 12.00 mA
Resolution	0.01mA
Open-circuit Voltage/ Frequency	30 V ±5 V rms / 50 Hz ±5%
Measuring Circuit	1.2 mA AC ±0.5 mA (when measuring 12.00 mA)
Accuracy	±3%rdg±5dgt
Insulation Testy Between L-N
Open-circuit Voltage	4.5 V ±0.5 V DC
Criteria of Judgement	100 kΩ ±20 kΩ or less: LCD shows “<0.10 MΩ” and the measurement is halted.
Physical Specifications
Safety	IEC/EN61010-1 CAT II 300V-instrument IEC/EN61010-2-030 IEC/EN61010-031 CAT III 600V
EMC	EN61326-1, 2-2
Possible number of measurements where battery voltage is within the effective range (measuring every 30 sec)	Approx. 1400 times (CLI Rpe: 0 Ω, Rins: 1.1 MΩ)
Boxed Weight	1.61Kg
Boxed Dimensions (L x W x D)	261 x 140 x 130mm

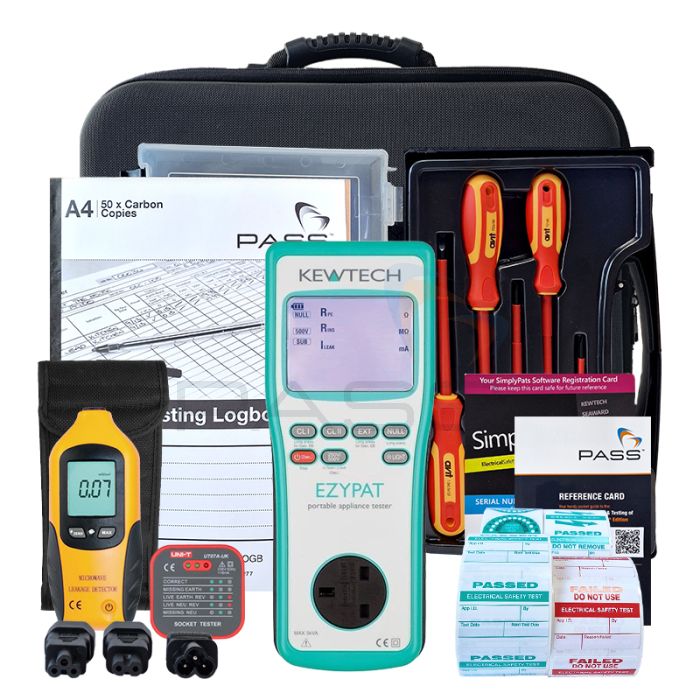

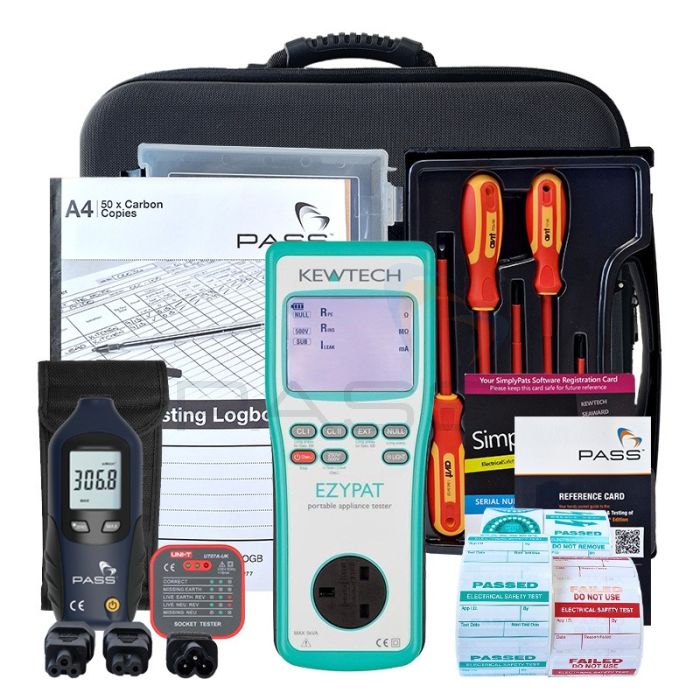

Kewtech EZYPAT PAT Tester – PAT Professional Kit (Bundle 2)
